Range

10 - 30 km

Flight Time

45 minutes

Weight

20 kg

Protection

IP45

Anti-Collision Sensors

360°

Max.Payload

6 kg

Long Range Transmission System

Cellular Enabled

Tap into the power of Cellular Connection and discover the new level of UAV application.

Vehicles manufacturer Umbrella will launch U-25Q3 in January 2023, a next-generation drone that can carry up to 6 kilograms of payload, fly in almost any weather conditions to a distance of 30-40 kilometers, and stay in the air between 45-60 mins. The large quadcopter can reach speeds of 70kph.

Unlimited Range|4G/LTE|Low Latency

Safety and Reliability

360° Obstacle Scanner

To enhance in-flight safety, the mechanically spinning 360° sensor appears at the top of the drone that constantly scans the entire lateral plain of the drone. Offering an obstacle detection range of 15 m, with options to customise the drones sensing range via the M-Ground Control. Even in difficult operating environments, this 360° sensing system helps keep the drone and the mission safe.

LiDAR Altimeter

To enhance in-flight safety and add additional precision, the bottom mounted LiDAR altimeter offers an incredibly precise altitude hold capability up to 15 m. Ideal for low altitude flight missions. It lets the drone constantly follow the grounds terrain and adjust the altitude according to the terrain bellow.

Point Hold Sensor

During low altitude hover of up to 2 m, the optical flow sensor will lock on to the certain ground feature and keep the drone fixed at one point. Essential safety feature that prevents the drone from even ever so slightly drifting around close to the ground and potentially creating a hazard to its surroundings.

Smart Return to Home

In an unlikely event of complete signal loss due to various possible factors, the drone will automatically return back from where it has took off. The smart part of the feature is that if there are obstacles on the way back to the take off point, the drones smart 360° obstacles avoidance system will sense and either overfly or fly around the obstacle. Incredibly important feature especially during flight over urban areas.

Cooling System

Passive on board Cooling

During the flight, the bottom front grills let the cool outside air channel through to the battery and vent out the back section for optimal battery cooling. The optimal battery cooling results in its improved performance and thus a longer flight time.The ability to use passive cooling system resulted in a great weight saving which further improved the flight time and overall performance.

Active on board Cooling

For certain electronic parts with small surface area to volume ratio that heat up during the use required an active cooling. Special light weight fans within the drones body circulate the air by forcing a constant current of cool outside air and blowing out the hot air out. This process keeps the onboard electronics cool for optimal performance.

Bleed Air Motor Cooling

One of the most important and perhaps most heated part of the drone is its motors. This is why we have developed our own unique way of cooling them. By positioning special air ducts bellow the motors, these air ducts guide the cool bleed air from the propeller thrust to the motors. Truly a unique system which is both incredibly light and effective at cooling the motors. The result: greatly improved performance, safety and a much longer motor life.

Anti Collision Protection

Navigation Lights

Landing Lights

AirSense ADS-B Receiver

Superior Ease of Operation

A truly capable and advanced drone, yet incredibly easy-to-use.

Ergonomic Flight Controls

From the layout of the flight controls to the position of the action buttons and the firmness that required to move the control sticks have all been carefully chosen.

On Board Flight Aids

From a stability control module to all round obstacle sensor and various backup safety features are an ideal aid to the operator that allows for very easy piloting even in the harshest conditions.

Autonomous Missions

Create a flight plan with various custom parameters and let the drone execute an entire flight mission from take off to cruise and landing.

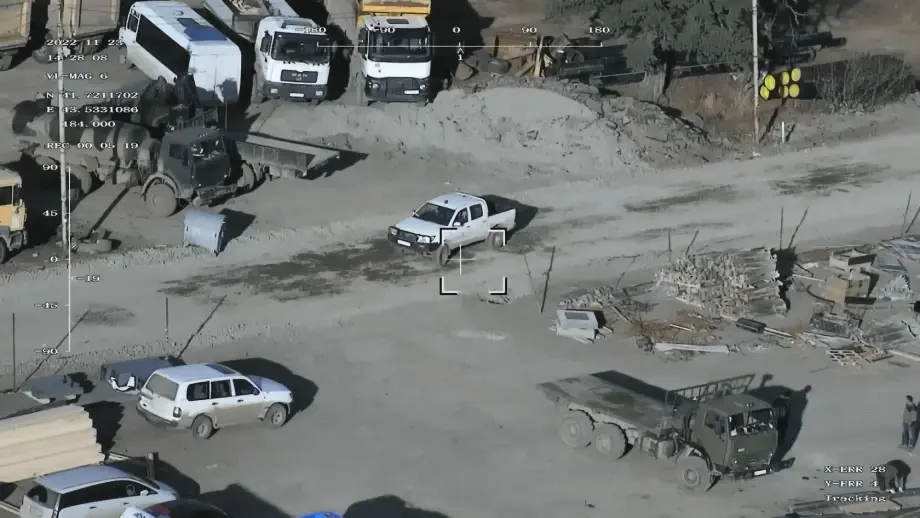

Smart Track

Chose a subject of interest on the screen of the remote controller and toggle a switch for camera to lock on to the chosen subject. Once camera locks on to the subject it will follow it and keep it in its sight.

Retractable Gear

Retractable landing gear allows for an unobstructed 360° camera view as well as reduced drag that aid the flight time and performance.

Dimensions

Incredibly portable for its size, the U-25Q3 has foldable arms, propellers and landing gear that makes it ideal for transportation. With an empty weight of 6.7 kg its also very light for its size and capabilities.

Payload

Universal Gimbal Port

Switch between any of our gimbal cameras, they are all compatible with our universal port. The simple and twist and click mechanism on our universal port allows for a quick and easy camera swaps.

Universal Peripheral Attachment

Switch between any of our peripheral payloads, the special attachment points bellow the drone allow for quick and easy attachments and detachments. The special auxiliary port also allows for connecting peripheral payloads to power source.

Some of the Compatible Payloads

M30T

The M30T has an incredible 30X optical zoom with the SONY STARVIS CMOS sensor which supports starlight night vision and has super image stabilisation. It also includes a thermal imager with a resolution of 640*512.

Show more

MT50

MT50 is a 3-axis stabilised gimbal camera which is made from an aviation grade aluminium with a stronger anti-interference performance. With 50mm 12μm 640*512 Pixel IR thermal sensorthe IR detect range is up to 6000m.

Show more

MD-5

MD-5 is a 5-stage (5 hooks) UAV airdrop device. The main body is composed of aviation grade aluminium and carbon fibre. Its characteristics are that it's light weight and has a max payload capacity of 5kgs per hook.

Show more

Applications

Law Enforcement

Quickly assess a situation and plan accordingly while improving officers and bystanders safety.

Powerline Inspection

Easily and accurately inspect the power line network in remote areas.

Paramedics

Rapidly deploy the help where it is needed the most and help save lives.

Search Rescue

Act quickly to locate missing people and provide the life critical support while also helping in coordinating the rescue mission.

Firefighting

Fight fires and save lives without endangering personnel.

Oil and Gas

Conduct accurate and detailed inspection of pipelines, well sites and more while keeping workers away from risky areas.

Aerial Survey

Conduct aerial survey and digitise surveying workflows for an improved data accuracy and efficiency.

Agriculture

Check the crop health by autonomously flying over the fields and gathering critical and accurate plant health data.

Urgent Supplies Delivery

Quickly and safely deliver critical supplies to where they are needed.

Private Security

Protect the private property by quickly identifying potential threats and aiding in the response while improving the safety and costs.
